200W Power Inverter for Car DC to AC Converter with USB Universal Socket
200W Power Inverter for Car Modified Sine Wave DC to AC Converter has advantages of Compact and light weight. Inverter cigarette lighter plug or battery cable can easily connect to a vehicle’s battery. AC converter can supply 220v or 110V AC directly from the car inverters output socket.
Meind 200W power inverter has been updated from IC to single-chip control. Now it has better quality, more accurate output frequency and voltage, less heat and fault.
You can also buy 200W Modified Sine Wave Power Inverter on our B2C online store: http://www.aliexpress.com/store/1147249
Six protection of Meind 200W Power Inverter for Car Modified Sine Wave DC to AC Converter:
1. Over Load Protection: When connected load exceeds the power inverter rated power watts (W), the inverter will automatically shut down to stop the output.
2. Over Heat Protection: As the internal temperature of the power inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment.
3. High-Voltage Protectionion: When the DC input voltage exceeds the normal range of the power inverter will automatically shut down to stop the output voltage is too high note when there may be damage to the machine.
4. Low-Voltage Protection: When the battery or power supply voltage is too low, the power inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised.
5. Reverse Protection: When the car inverter link reverse to battery, inverter fuse will be blown, without damaging the product itself, you need to replace the fuse.
6. Short Circuit Protection: When the load is connected severe short-circuit fault, the inverter will automatically shut down to stop the output.
| Inverter Model | M8203 (200W) |
| 1. Input Voltage: | DC12V(10-14.8V) / DC24V(18-28V) |
| 2. Output Voltage: | AC220V / AC110V / AC120V / AC240V ±8% |
| 3. Continuous Power output: | 200W |
| 4. Surge Power Capacity: | 400W |
| 5. Output Waveform: | Modified Sine Wave |
| 6. Frequency: | 50Hz/60Hz +/-4 |
| 7. Availability Power: | >90.5% |
| 8. Low Voltage Range: | <DC 9.6V / DC 18.5V |
| 9. High Voltage Range: | >DC 14.8V / DC 28.5 |
| 10. No Load current: | <0.4A |
| 11. Over Load Protection: | >200W |
| 12. Over Heat Protection: | >60 Degree Centigrade |
| 13. Fuse: | 1*15A |
| 14. Cooling Fan: | Yes |
| 15. USB Port: | 5V-500mA |
| 16. Product Packing: | Blister card |
| 17. Product Size: | 125*70*46mm |
| 18. Product N.W/G.W: | 0.49kg/0.49kg |
| 19. Carton Packing: | 40PCS/CTN |
| 20. Carton Weight: | 19kg |
| 21. Carton Size: | 51*38*38cm |
200W Power Inverter for Car Modified Sine Wave pictures:

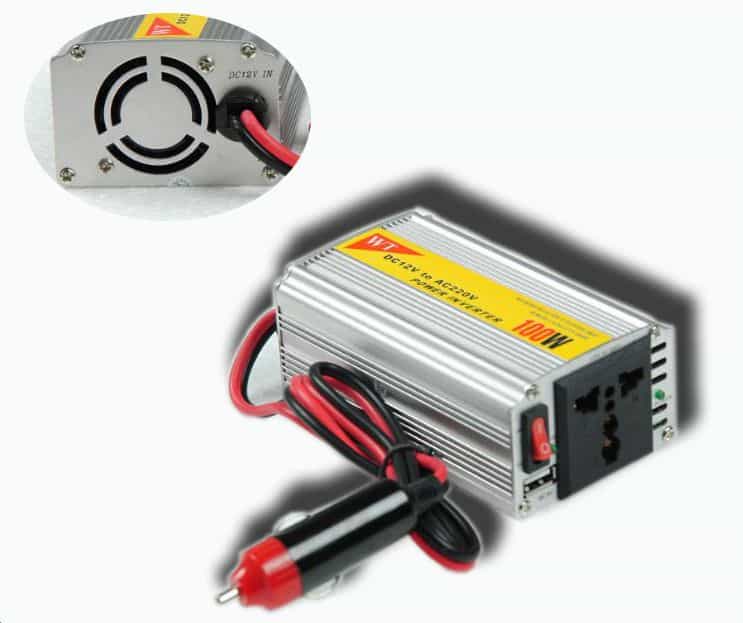

100W Modified Sine Wave Power Inverter
Welcome to check our other inverters: Modified Sine Wave Inverter, Pure Sine Wave Inverter
