2000W Power Inverter with Universal Socket
It is Modified Sine Wave, has advantages of Compact and light weight. Inverter cigarette lighter plug or battery cable can easily connect to a vehicle’s battery. AC converter can supply 220v or 110V AC directly from the car inverters output socket. More customize info, please contact us.
6 protections of economy 2000W Power Inverter:
1. Over Load Protection: When connected load exceeds the power inverter rated power watts (W), the inverter will automatically shut down to stop the output.
2. Over Heat Protection: As the internal temperature of the power inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment.
3. High-Voltage Protectionion: When the DC input voltage exceeds the normal range of the power inverter will automatically shut down to stop the output voltage is too high note when there may be damage to the machine.
4. Low-Voltage Protection: When the battery or power supply voltage is too low, the power inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised.
5. Reverse Protection: When the car inverter link reverse to battery, inverter fuse will be blown, without damaging the product itself, you need to replace the fuse.
6. Short Circuit Protection: When the load is connected severe short-circuit fault, the inverter will automatically shut down to stop the output.
Inverter Model : 2000B
1. Input Voltage: DC12V(10-14.8V) / DC24V(18-28V)
2. Output Voltage: AC220V / AC110V / AC120V / AC240V ±8%
3. Continuous Power output: 1000W
4. Surge Power Capacity: 2000W
5. Output Waveform: Modified Sine Wave
6. Frequency: 50Hz/60Hz +/-4
7. Availability Power: >90.5%
8. Low Voltage Range: <DC 9.6V / DC 18.5V
9. High Voltage Range: >DC 14.8V / DC 28.5
10. No Load current: <0.4A
11. Over Load Protection: >1000W
12. Over Heat Protection: >60 Degree Centigrade
13. Fuse: 2*30A (external)
14. Cooling Fan: Yes
15. Product Packing: Gift Box
16. Product Size: 140*87*47mm
17. Product N.W/G.W: 0.67kg/0.8kg
18. Carton Packing: 40PCS/CTN
19. Carton Weight: 30kg
20. Carton Size: 51*38.8*38cm

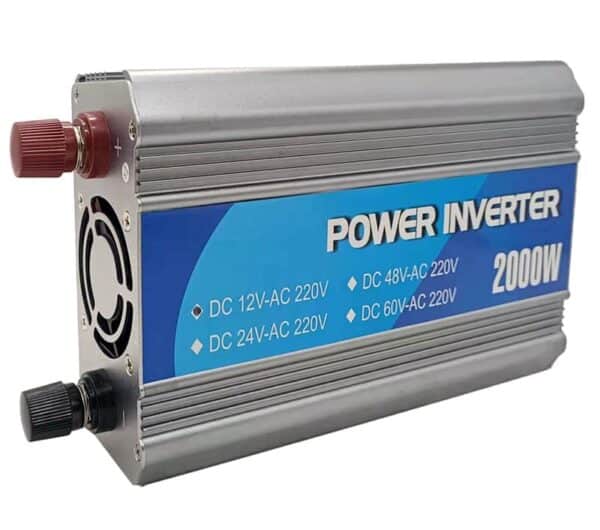

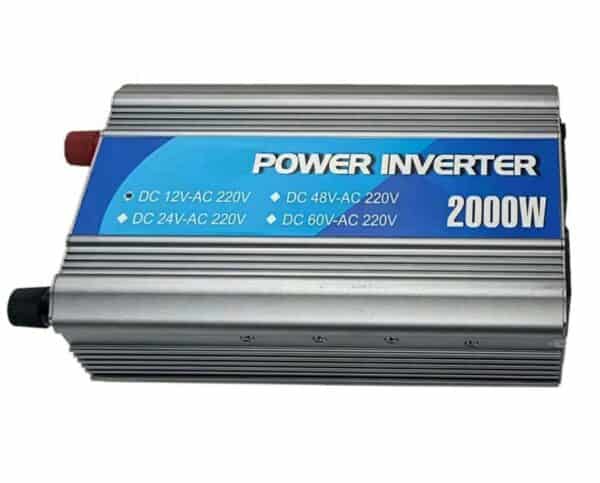

Economy 2000W Power Inverter with Modified Sine Wave pictures:
